FlexBus Lite

Integrated conveying control, all built within the blender or ULTRA dryer touchscreen control.

  • Control of up to 1 vacuum pump and 10 receivers
  • Full feature conveying control
  • Works with Maguire & third-party loading equipment

Conveying Control Overview

FlexBus Lite vs. FlexBus

  • FlexBus Lite = control of 1 vacuum pump and up to 10 materials receivers, integrated with purge (line cleaning control), loading prioritization, and many other control features.
  • FlexBus = control of up to 5 vacuum pumps and up to 48 receivers per vacuum pumps, integrated with purge (line cleaning control), loading prioritization, and many other control features.
  • FlexBus Lite – standard on blender & dryer touchscreen controls.
  • For existing Maguire gravimetric blenders, the latest touchscreen control featuring FlexBus Lite can easily be retrofitted.

Features & Functions

  • Line cleaning, prioritization, backup pump interfaces, and easy management of materials loading times and receiver and pump setup and control.
  • Features typically only found on larger central systems controls.

Simplify Process Control to One Controller

  • Visual and easy to see conveying status to and from Maguire blender and ULTRA dryer.
  • Operator-friendly icons to navigate receiver & pump menus, blender & dryer modules.

Intuitive HMI

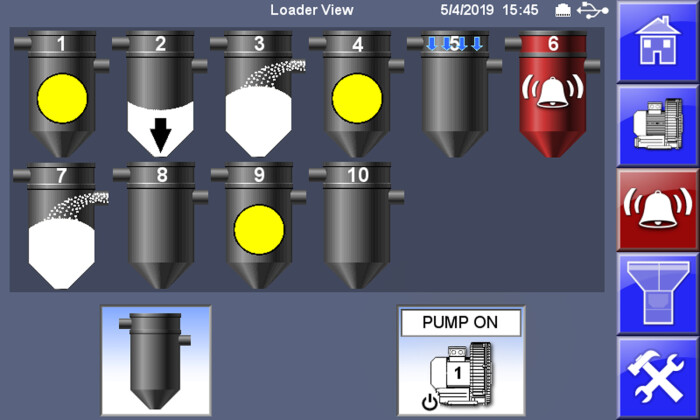

Home Screen

Intuitive display shows functions such as:

  • Loader demand
  • Loader discharge
  • Loader filling
  • Filter cleaning
  • Alarm

Receiver Set Up

Allows for full system functionality control of each receiver:

  • Load time
  • Retry
  • Dump time
  • Filter control
  • Line cleaning
  • Prioritization

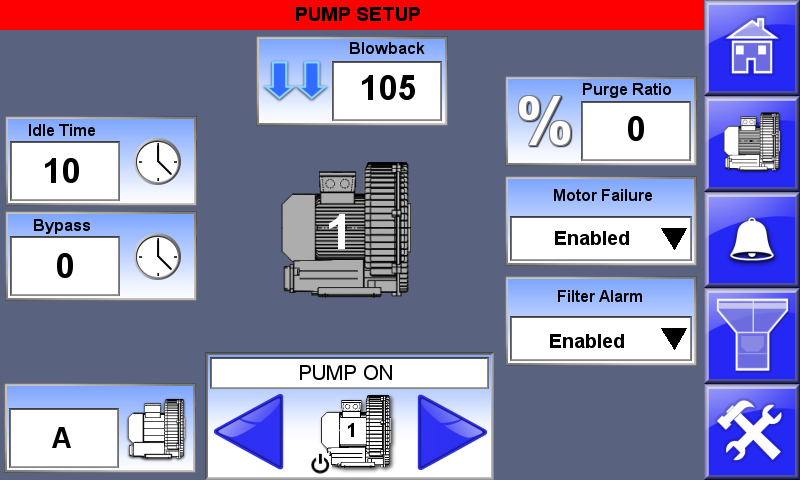

Pump Set Up

Pump set up with easy access to all features for complete pump control:

  • Backup
  • Easy switch over
  • Controls for bypass
  • Filter cleaning
  • Purge
  • Alarm monitoring


Watch and Learn More

Manage conveying, dosing, and blending all in one.

Control up to 10 receivers and one vacuum pump.

Vacuum pump and receivers can be Maguire or existing third-party pumps and receivers that might be in place already.

FlexBus Lite Conveying Features: Example shows FlexBus Lite with a Maguire WSB Gravimetric Blender.


FlexBus Lite at a Glance

1. User-Friendly HMI

Quick, simple to understand icons & graphics make set up quick & easy.

3. 10 Material Receivers

Control up to 10 material receivers from the 4088 touchscreen control.

5. Receiver Features

Full system functionality control of each receiver, including view of load times, retries, dump time, filter control, line cleaning, and prioritization.

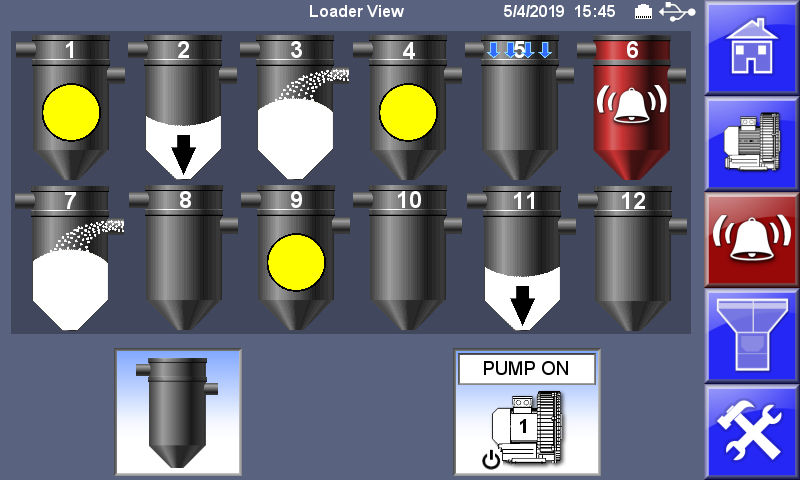

7. FlexBus Lite Home Screen

Intuitive display shows functions such as loader demand, loader discharge, loader filling, filter cleaning and alarms.

12345678Photo of FlexBus Lite

2. Pump Control

Control 1 vacuum pump from FlexBus Lite touchscreen.

4. Pump Features

Easy Access to all features for complete pump control with options for backup, easy switch over, controls for bypass, filter cleaning, purge and alarm monitoring.

6. Blender Operation

See operation of blender, label materials & hoppers, view material percentage & type.

8. Alarm & User History

Exportable history as text files with date and time stamps.
