Flexible and compact solutions, ideal for small to medium sized conveying applications.
Full View of Material Loading
Choice of Compact Vacuum Pumps
Cyclone Dust Collector
MLS Loading System Controller
Two types of controls available:
Automatic Control
Easy Setting of Fill Time
Easy Access for Cleanout
Load Conveying Alarms
Reduction of Clogging
Fast-action slide gate that prevents pellet entrapment during material discharge
Modular Layout
48 Receivers per Vacuum Group
Syntrol Compatible
5 Year Warranty
Clear-Vu body allows for superior ease of use, to see loading status from any point around the process.
Ideal for small to medium sized conveying applications.
The controller sequences through the various receivers, loading each as either first-in-first-out or priority loading, depending on requirements.
Choose between a basic 8 receiver control or the advanced FlexBus control which is expandable to 5 vacuum groups and 48 receivers per pump.

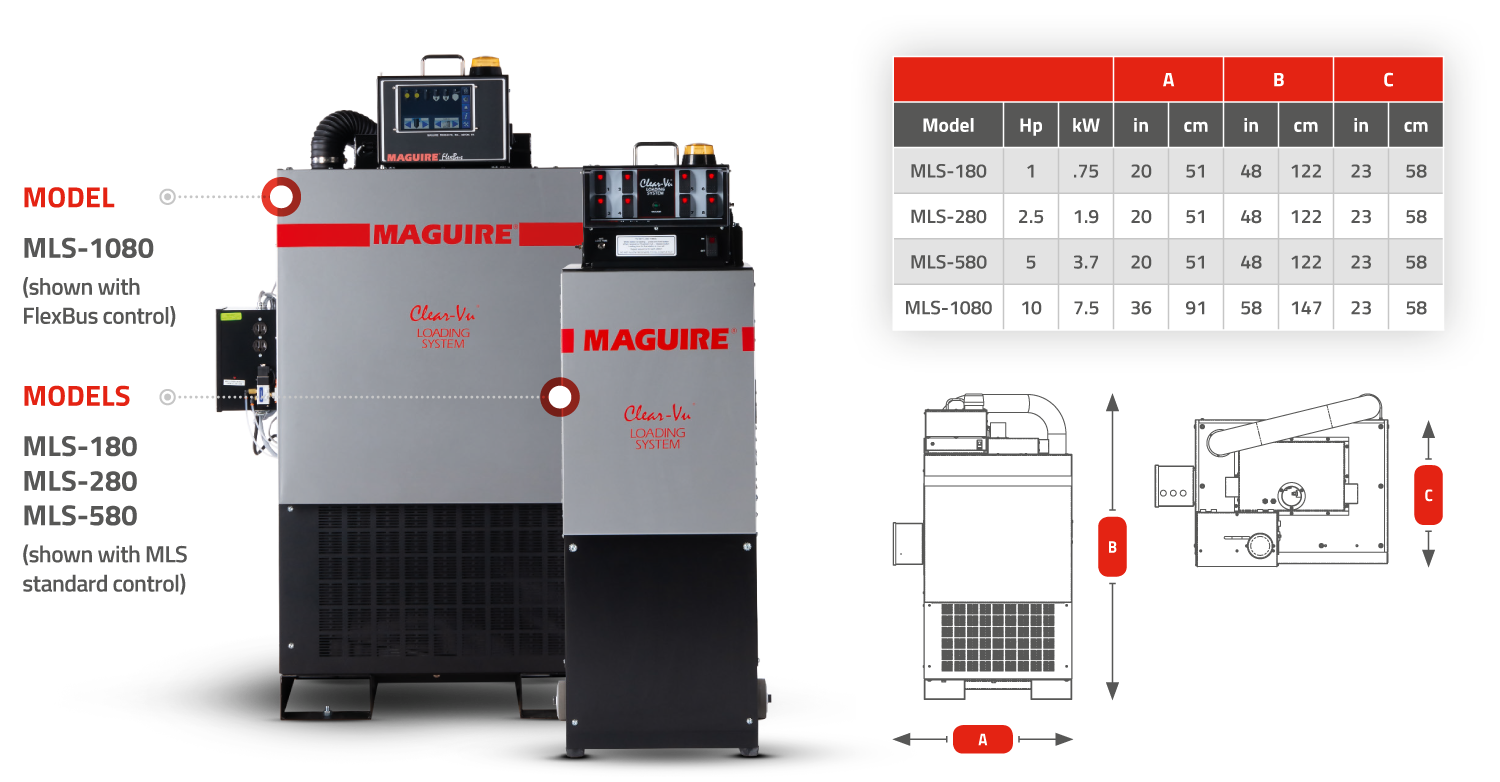

The power unit is portal and available with a 1, 2.5, 5 or 10 HP pump / 0.75, 1.9, 3.7, 7.5 kW pump.
The modular layout of the MLS system allows you to expand as your plant grows.

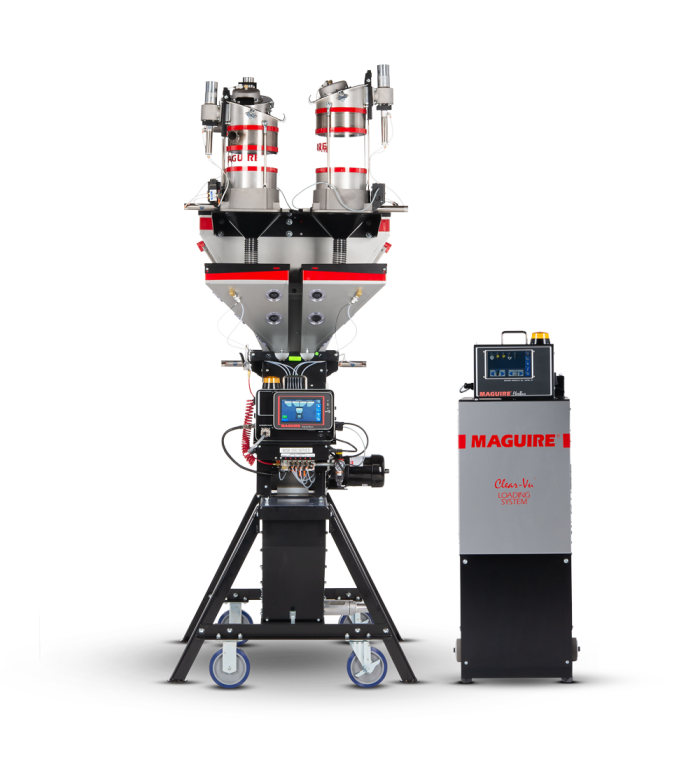

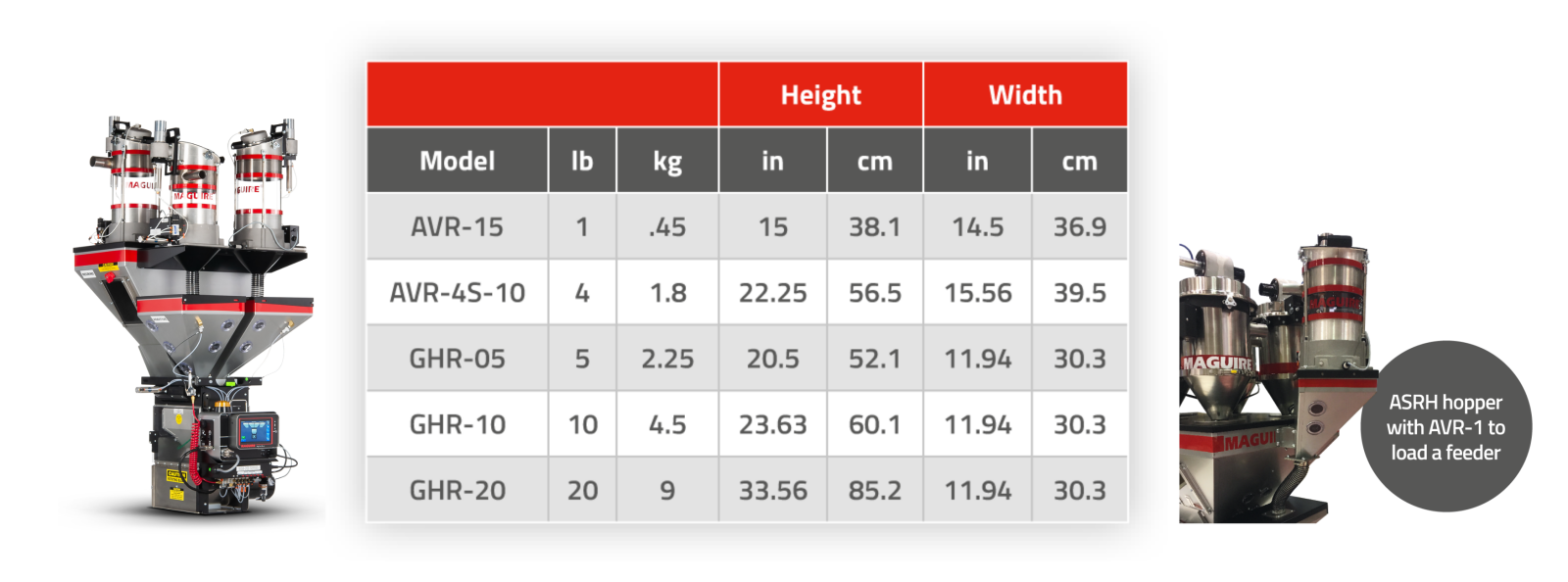

The Maguire Glass-Vu receiver integrates with both the MLS Loading System and our FlexBus Conveying system.

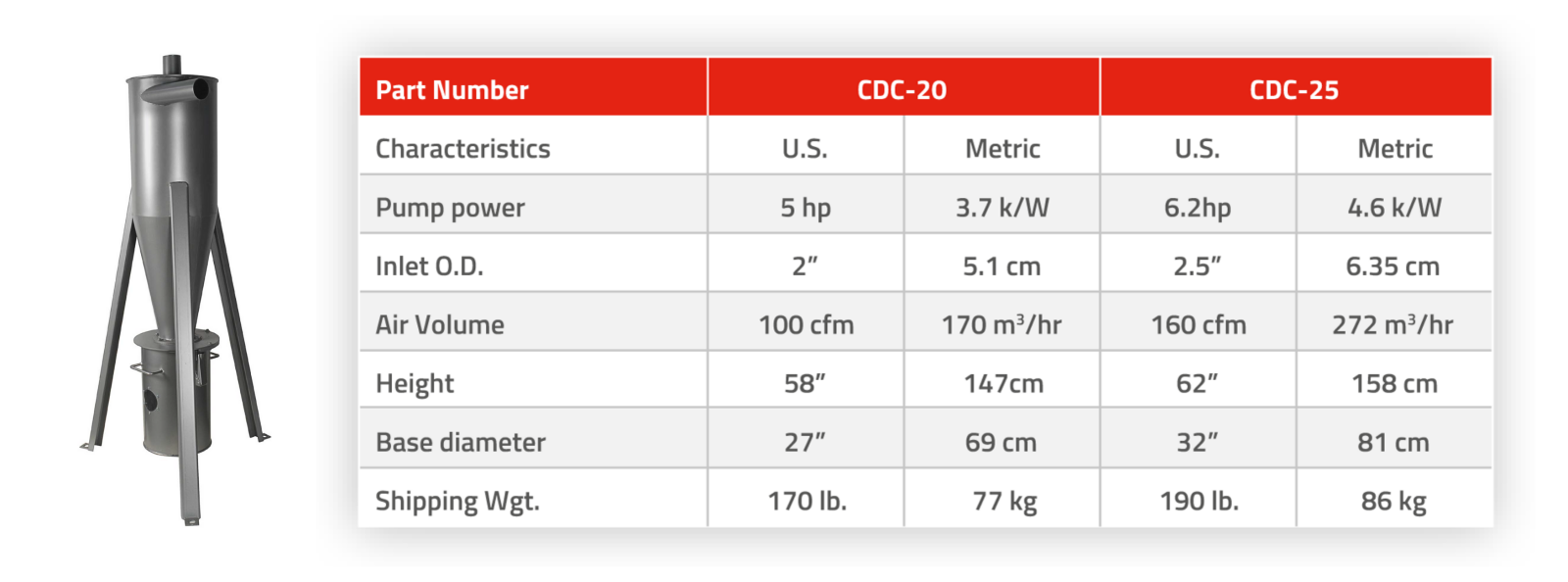

Protects the vacuum pump and reduces filter maintenance by collecting dust and fines.
